DSL - DSL Tools

Synopsis

DSL Tools.

$ dse-parse2ast [args]

Commands

dse-parse2ast

Convert a DSE file into an intermediate JSON representation.

$ dse-parse2ast <dse_file_path> <json_output_file_path>

Keywords

simulation

Defines the simulation setup including architecture, stepsize, and endtime.

simulation arch=linux-amd64 stepsize=0.0005 endtime=0.005

arch

Specifies the architecture in simulation or stack or model level (default : linux-amd64 ).

simulation arch=linux-amd64

stepsize

Time increment for each simulation step (default : 0.0005).

simulation stepsize=0.0005

endtime

Total simulation duration step (default : 0.005).

simulation endtime=0.005

channel

Declares a communication channel.

channel physical

network

Defines a network interface.

network CAN 'application/x-automotive-bus;interface=stream;type=frame;bus=can;schema=fbs;bus_id=1'

uses

Imports external dependencies such as modules, FMUs, or files. The uses keyword supports both remote and local references.

Remote references

Dependencies can be fetched from external sources such as GitHub or artifact repositories.
Authentication (e.g., using a personal access token) may be required.

uses
dse.fmi https://github.com/boschglobal/dse.fmi v1.1.34
example https://github.boschdevcloud.com/fsil/fsil.runnable/releases/download/v1.1.2/example.zip token={{.GHE_PAT}}

Local references

Dependencies can also be referenced directly from the local filesystem. Both absolute and relative paths are supported.

uses
example1 /home/users/example.zip
example2 example.zip

var

Declares variables, which may refer to other resources or contain static values.

model runnable fsil.runnable uid=5
channel signal signal_channel
channel network network_channel

workflow unpack-runnable-target
    var ROOT_DIR {{.OUTDIR}}
    var ZIP uses example
    var DIR {{.SIMDIR}}/{{.PATH}}

model

Defines a component in the simulation, such as an FMU or a gateway.

model runnable fsil.runnable
channel signal signal_channel
channel network network_channel

uid

Assigns a unique ID to a model.

model runnable fsil.runnable uid=5
channel signal signal_channel
channel network network_channel

envar

Declares an environment variable used at model or stack scope.

model runnable fsil.runnable uid=5
channel signal signal_channel
channel network network_channel
envar SIMBUS_LOGLEVEL 3

workflow

Defines a processing or generation step applied to a model or stack.

model runnable fsil.runnable uid=5
channel signal signal_channel
channel network network_channel

workflow unpack-runnable-target
    var ROOT_DIR {{.OUTDIR}}
    var ZIP uses example
    var DIR {{.SIMDIR}}/{{.PATH}}

stack

Declares a group of models composed together for simulation.

stack fmu-stack

model FMU_S1 dse.fmi.mcl
channel physical scalar_vector
workflow generate-fmimcl
var FMU_DIR uses fmu_s1
var MCL_PATH some/path
var OUT_DIR {{.model.name}}

model FMU_S2 dse.fmi.mcl
channel physical scalar_vector
workflow generate-fmimcl
var FMU_DIR uses fmu_s2
var MCL_PATH some/path
var OUT_DIR {{.model.name}}

stacked

A boolean flag that indicates if the models in a stack should be layered.

stack fmu-stack stacked=true arch=linux-x86

model FMU_S1 dse.fmi.mcl
channel physical scalar_vector
workflow generate-fmimcl
var FMU_DIR uses fmu_s1
var MCL_PATH some/path
var OUT_DIR {{.model.name}}

model FMU_S2 dse.fmi.mcl
channel physical scalar_vector
workflow generate-fmimcl
var FMU_DIR uses fmu_s2
var MCL_PATH some/path
var OUT_DIR {{.model.name}}

sequential

A boolean flag for stacks that ensures models are executed one after another, in a defined order.

stack fmu-stack stacked=true sequential=true arch=linux-x86

model FMU_S1 dse.fmi.mcl
channel physical scalar_vector
workflow generate-fmimcl
var FMU_DIR uses fmu_s1
var MCL_PATH some/path
var OUT_DIR {{.model.name}}

model FMU_S2 dse.fmi.mcl
channel physical scalar_vector
workflow generate-fmimcl
var FMU_DIR uses fmu_s2
var MCL_PATH some/path
var OUT_DIR {{.model.name}}

file

Maps or includes external input/configuration files in the simulation.

model FMU dse.fmi.mcl uid=42
channel physical scalar_vector
file input.csv uses input_file
file data/signalgroup.yaml sample/data/signalgroup.yaml
workflow generate-fmimcl
  var FMU_DIR uses fmu_2
  var MCL_PATH some/path
  var OUT_DIR {{.model.name}}

Example DSL File

simulation arch=linux-amd64
channel physical

uses
dse.modelc https://github.com/boschglobal/dse.modelc v2.1.23
dse.fmi https://github.com/boschglobal/dse.fmi v1.1.23
linear_fmu https://github.com/boschglobal/dse.fmi/releases/download/v1.1.23/Fmi-1.1.23-linux-amd64.zip path=examples/fmu/linear/fmi2/linear.fmu

model input dse.modelc.csv
channel physical signal_channel
envar CSV_FILE model/input/data/input.csv
file input.csv input/openloop.csv
file signalgroup.yaml input/signalgroup.yaml

model linear dse.fmi.mcl
channel physical signal_channel
envar MEASUREMENT_FILE /sim/measurement.mf4
workflow generate-fmimcl
var FMU_DIR uses linear_fmu
var OUT_DIR {{.PATH}}/data
var MCL_PATH {{.PATH}}/lib/libfmimcl.so

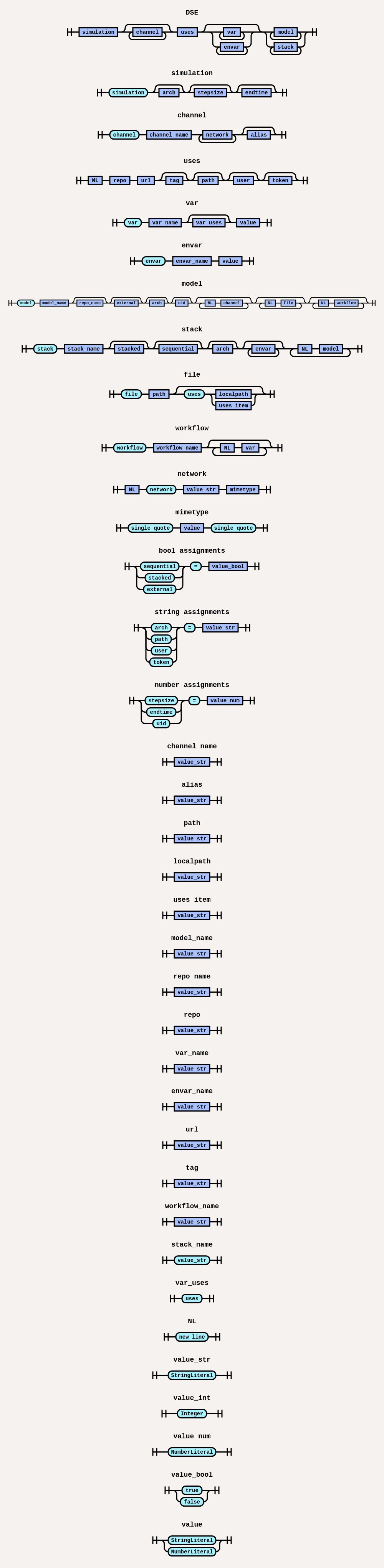

Syntax Diagram
