Schedule API Reference

Schedule API

The Schedule API proves a task schedule with configurable beat and an optional delay. Interfaces of the Schedule object allow for customization of the schedule behaviour, these include:

  • ScheduleVTable - tick and marshalling call interfaces.
  • ScheduleTaskVTable - Support custom task call interfaces, the default is a simple void (*)(void) function call.

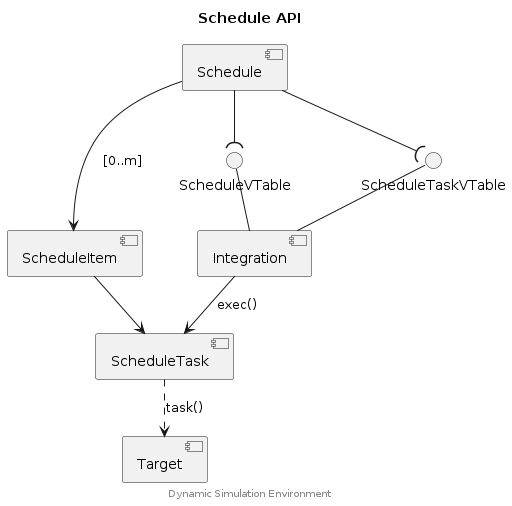

Component Diagram

schedule-api

Example

// Copyright 2025 Robert Bosch GmbH

#include <stddef.h>
#include <stdio.h>
#include <dse/clib/schedule/schedule.h>

void task_init(void)
{
    printf("task_init\n");
}
void task_1ms(void)
{
    printf("task_1ms\n");
}
void task_5ms(void)
{
    printf("task_1ms\n");
}

void schedule_api_example(void)
{
    // Configure the schedule.
    Schedule s = { 0 };
    schedule_configure(
        &s, (ScheduleVTable){ 0 }, (ScheduleTaskVTable){ 0 }, 0.001, NULL);
    schedule_add(&s, task_init, 0);
    schedule_add(&s, task_1ms, 1);
    schedule_add(&s, task_5ms, 5);

    // Progress simulation for 10 ms.
    for (double sim_time = 0; sim_time <= 0.01001; sim_time += 0.0005) {
        schedule_tick(&s, sim_time);
    }

    // Destroy the schedule.
    schedule_destroy(&s);
}

Typedefs

Schedule

typedef struct Schedule {
    ScheduleVTable vtable;
    ScheduleItem* list;
    int count;
    double schedule_time;
    double* delay;
    double beat;
    uint32_t tick;
    bool init_tick_done;
    ScheduleTaskVTable task_vtable;
}

ScheduleItem

typedef struct ScheduleItem {
    ScheduleTask task;
    uint32_t schedule_beats;
    uint32_t alarm;
}

ScheduleTaskVTable

typedef struct ScheduleTaskVTable {
    ScheduleTaskExec exec;
    ScheduleTaskInfo info;
    ScheduleTaskFree free;
}

ScheduleVTable

typedef struct ScheduleVTable {
    void* data;
    ScheduleTick tick;
    ScheduleMarshal marshal_in;
    ScheduleMarshal marshal_out;
    ScheduleMarshal marshal_noop;
}

Functions

schedule_add

Add a task to the schedule.

Parameters

s (Schedule*)
A schedule descriptor object.
task (ScheduleTask)
A task object (void*). This may represent any type or object that is supported by the configured ScheduleTaskVTable.
schedule_beats (uint32_t)
Indicates the schedule of the task in beats. Set to 0 for initialisation tasks.

schedule_configure

Configure a schedule object.

Parameters

s (Schedule*)
A schedule descriptor object to be configured.
vtable (ScheduleVTable)
Reference to a ScheduleVTable object. Can be provided as a null object (e.g. (ScheduleVTable){ 0 }) in which case the default tick function is configured (schedule_default_tick).
task_vtable (ScheduleTaskVTable)
Reference to a ScheduleTaskVTable object. Can be provided as a null object (e.g. (ScheduleTaskVTable){ 0 }) in which case the default exec function is configured (schedule_default_exec).
beat (double)
The schedule beat. If 0 then the default DEFAULT_BEAT is used (1 mSec).
delay (double*)
Pointer to a delay value which will be applied to the schedule. Set to NULL if no delay should be configured.

schedule_destroy

Releases any resourced allocated to the schedule. If ScheduleTaskVTable.free is configured then that function is called, the implementation of that function should release resources allocated to each ScheduleItem object as required.

Parameters

s (Schedule*)
A schedule descriptor object.

schedule_tick

Tick the schedule items, and execute tasks as required.

Parameters

s (Schedule*)
A schedule descriptor object.
simulation_time (double)
The current simulation time.
